FR Module

Face Recognition

CORTROL FR (Face Recognition) is a biometric application that is designed to work with CORTROL Premier & Global Servers.

The technology assures system performance and reliability with live face detection, simultaneous multiple face recognition and fast face matching in 1-to-1 and 1-to-Many modes.

CORTROL FR (Face Recognition) is ideally suited for human resource control applications as well as for security and enforcement applications.

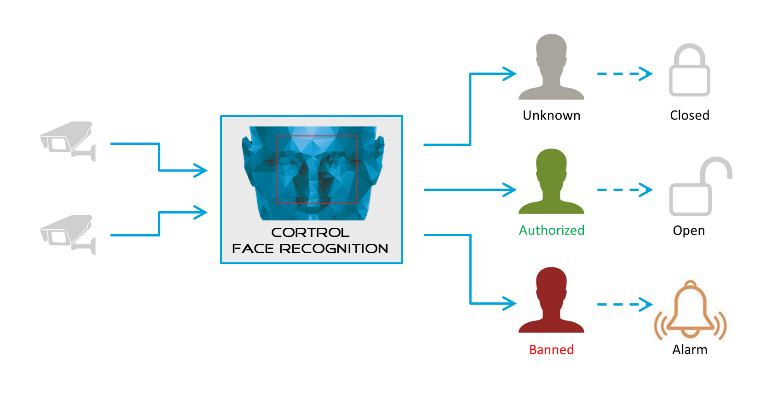

FR scheme small EN - FR Module
twarz - FR Module

Key features

Multitude of supported IP and analog cameras

Simultaneous multiple video streams processing

Easy to use User Interface for setup,monitoring and data retrieval

Flexible actions configuration for vast tags of persons

Other features

  • Quick and convenient registered faces search and browsing
  • Simultaneous multiple face processing in live video
  • Storing recognized faces images on local or central database
  • Relies on CORTROL VMS servers for live and recorded video streams
  • Process video streams from multiple CORTROL VMS servers
  • Very simple installation with configured ready to go data base
  • Option to use own data base instead of default one

Screenshots

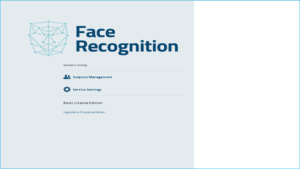

Initial screen

CORTROL FR screen01 300x169 - FR Module

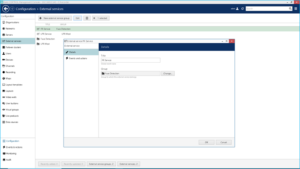

Settings

CORTROL FR screen02 300x169 - FR Module

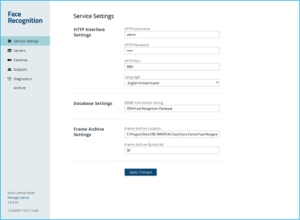

Service settings

CORTROL FR screen04 300x220 - FR Module

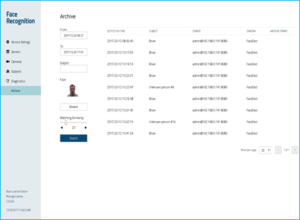

FR Subjects

CORTROL FR screen06 300x220 - FR Module

Licensing

FeaturesZNS-FR-2 (basic)ZNS-FR-U (Enterprise)
Maximum number of faces recognized in 10 seconds per system5500*
Maximum number of simultaneously connected video streams210**
Maximum number of simultaneously recognized faces per system150*
Required minimal face presence time for accurate recognition1 second0.1 seconds
* Server hardware performance must comply recommendations
** Up to 200fps per system. Server hardware performance must comply recommendations

Recommended hardware requirements

ZNS-FR-2 (Basic)ZNS-FR-U (Enterprise)
Number of video streams121 & 23 - 10
CPUIntel i3 >2,8 Ghz
(4 threads)
Intel i5 >3,0 Ghz
(4 threads)
Intel i7 > 3,2 Ghz
(8 threads)
Intel i7 or Xeon >3,2 Ghz
(16 threads)
RAM8 Gb16 Gb
Storage~ 1 Gb per 1000 recognition results*
OSMS Windows 64bit versions only (no 32bit OS support) Editions: 7, 8, Server 2008, Server 2012**
* Exact size depends on video stream resolution. The number shown is calculated for FullHD video stream resolution.
** Virtualized environment is not supported.

Download

The newest software version of CORTROL FR Module is available in Software Downloads section.
